Design Record
π 2-DIMENSIONAL PRINT (DESIGN RECORD)
Latest drawing released by MPT must be included in PPAP package? (Drawing must be MPT / Customer released drawing regardless of who has design responsibility)

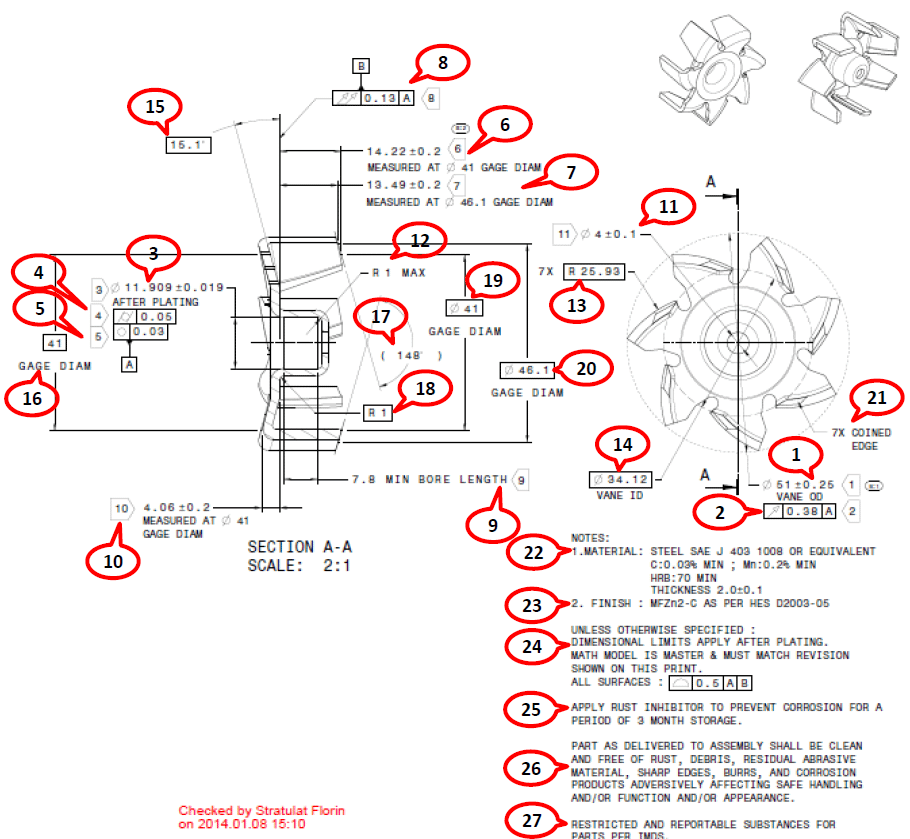

All Dimensions including any material specifications and drawing notes must be ballooned / numbered (where a single callout references more than 1 feature, are the individual features ballooned)?
Must have Dimensional and Material/Performance test results reported for all ballooned / numbered features?
Must have all ballooned / numbered features included on PFMEA and Control Plan?
