Measurement variation can be frustrating—especially when the same part yields slightly different results depending on the day or the operator. These small inconsistencies can accumulate, undermining process reliability and even leading to defective products. One of the key culprits? Measurement system bias.
In this post, we’ll walk through how to manage and verify bias based on the AIAG MSA 4th Edition, including control chart methods, statistical t-tests, and practical tips tailored for the automotive industry.
1. What Is Measurement Bias and Why Does It Matter? 🤔
Quality control starts with accurate measurement. Even the best products can fail if the measurement system is flawed. That’s where Measurement Systems Analysis (MSA) comes in—it helps identify and quantify variation in measurement processes to ensure data reliability.
According to AIAG MSA 4th Edition, bias is defined as:
“The difference between the average of repeated measurements and the reference (true) value.”
In simple terms, bias tells us how much a gauge consistently deviates from the true value. For example, if a master sample with a true length of 10.00 mm is repeatedly measured and the average result is 10.02 mm, the bias is +0.02 mm.
💡 Note:
Bias relates to accuracy, while precision is assessed through repeatability and reproducibility. Both are critical, but bias reflects systematic error and must be regularly monitored.

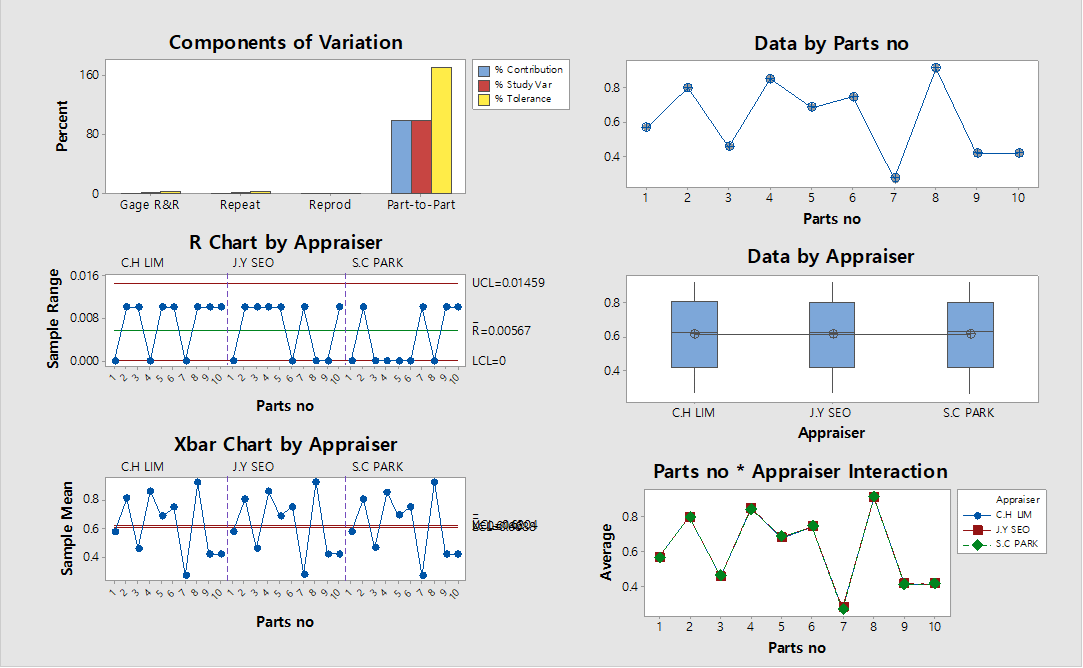

2. How to Monitor Bias Regularly 📊
Bias can change over time—a phenomenon known as stability or drift. To maintain a reliable measurement system, bias should be checked periodically.
The most effective method is the Control Chart Method recommended by MSA 4th Edition. This approach allows you to visually monitor both bias and stability.
✅ Bias Monitoring Procedure Using Control Charts
| Step | Description | Notes |
|---|---|---|
| 1. Prepare Master Sample | Select a stable sample near the middle of the measurement range. Measure it with a higher-accuracy device to determine the reference value. | Use durable, non-deforming materials. |
| 2. Periodic Measurement | Measure the master sample 3–5 times at regular intervals (daily, weekly, etc.). | Aim for at least 20 subgroups for statistical reliability. |
| 3. Create Control Charts | Plot the data on X-bar & R (or s) charts. | Ensure the chart is in control before proceeding. |
| 4. Calculate Bias | If the chart is stable, calculate bias as: | |
| Bias = X-double bar – Reference Value | This represents the average systematic error. |
3. Is It Random Error or Significant Bias? 🧮
Once bias is calculated, the next step is to determine whether it’s statistically significant or just random variation. This is done using a t-test.
📝 Hypothesis Setup
- Null Hypothesis (H₀): Bias = 0 (no significant difference)
- Alternative Hypothesis (H₁): Bias ≠ 0 (significant difference exists)
📝 t-Statistic Formula (MSA 4th Edition)
$ t = \frac{\text{Bias}}{\sigmab} = \frac{\text{Bias}}{\sigmar / \sqrt{n}} $
Where:
- Bias = X-double bar – Reference Value
- σ_b = Standard error of bias
- σ_r = Repeatability standard deviation
- n = Total number of measurements (subgroups × subgroup size)
⚠️ Important:
Before bias analysis, ensure that repeatability (%EV) is within acceptable limits. If variation is too high, bias analysis may be invalid. Typically, a %GRR over 30% indicates the need for improvement.
If the calculated t-value exceeds the critical value (e.g., α = 0.05), or the confidence interval for bias does not include zero, the bias is statistically significant—meaning corrective action is required.
4. What Do Automotive Customers Expect? 👩💼👨💻
Bias management isn’t just theoretical—it’s a customer requirement in the automotive industry, especially for IATF 16949 compliance.
🚗 Key OEM Requirements
- Ford: Requires AIAG MSA compliance and specific GRR thresholds (e.g., %GRR < 10%).
- GM: Uses standards like GMW15049 to manage Key Control Characteristics (KCC), demanding low bias and variation.
- Stellantis: Follows AIAG & VDA FMEA guidelines, emphasizing accuracy for high-severity failure modes.
📌 Bottom Line:
All major OEMs expect reliable measurement systems with minimal bias and variation. Regular bias checks are essential to meet these expectations and maintain certification.
Final Thoughts: Reliable Measurement Starts with Small Habits 📝
Managing bias may seem complex at first, but with tools like Excel or statistical software, it becomes a routine part of quality assurance. Think of it as a health check for your measurement system.
Accurate measurement is the foundation of quality. By applying the methods outlined here, you can build confidence in your data and elevate product quality.
🔍 Quick Summary: Bias Management Essentials
- ✨ Understand Bias: It’s the difference between the average measurement and the reference value—indicating systematic error.
- 📊 Monitor Regularly: Use control charts to track stability and calculate bias.
- 🧮 Verify Statistically: Apply t-tests to determine if bias is significant.
- 👩💻 Meet Customer Expectations: Automotive OEMs require low bias and variation for compliance.
❓ Frequently Asked Questions
Q: How often should bias be checked?
A: It depends on usage frequency, process criticality, and historical stability. Monthly or quarterly checks are common, but critical gauges may need more frequent monitoring.
Q: What if the t-test shows significant bias?
A: Stop using the gauge, investigate the cause (e.g., calibration error, wear, zero shift), and take corrective action. Re-verify bias after resolution.
Q: What’s the difference between bias and repeatability?
A: Bias relates to accuracy (how close to the true value), while repeatability relates to precision (how consistent the measurements are).
Q: What if I don’t have a master sample?
A: Use a production part as a temporary master, measure it multiple times with a higher-accuracy device (e.g., CMM), and use the average as a reference.
Q: Do I need to check bias for all gauges?
A: All gauges listed in the Control Plan should undergo MSA. Prioritize those used for critical characteristics or final product decisions.
