Mastering Project Timing Plans in Automotive : A Guide Based on AIAG & VDA Standards

In the automotive industry, the success of a new product launch hinges on meticulous planning, cross-functional collaboration, and proactive risk management. At the heart of this process lies Advanced Product Quality Planning (APQP)—a structured methodology designed to ensure that products meet customer expectations from concept to production.

Two globally recognized frameworks guide APQP implementation: the AIAG (Automotive Industry Action Group) approach and the VDA (Verband der Automobilindustrie) Maturity Level Assurance model. This post explores how to develop a robust project timing plan using both standards.

---

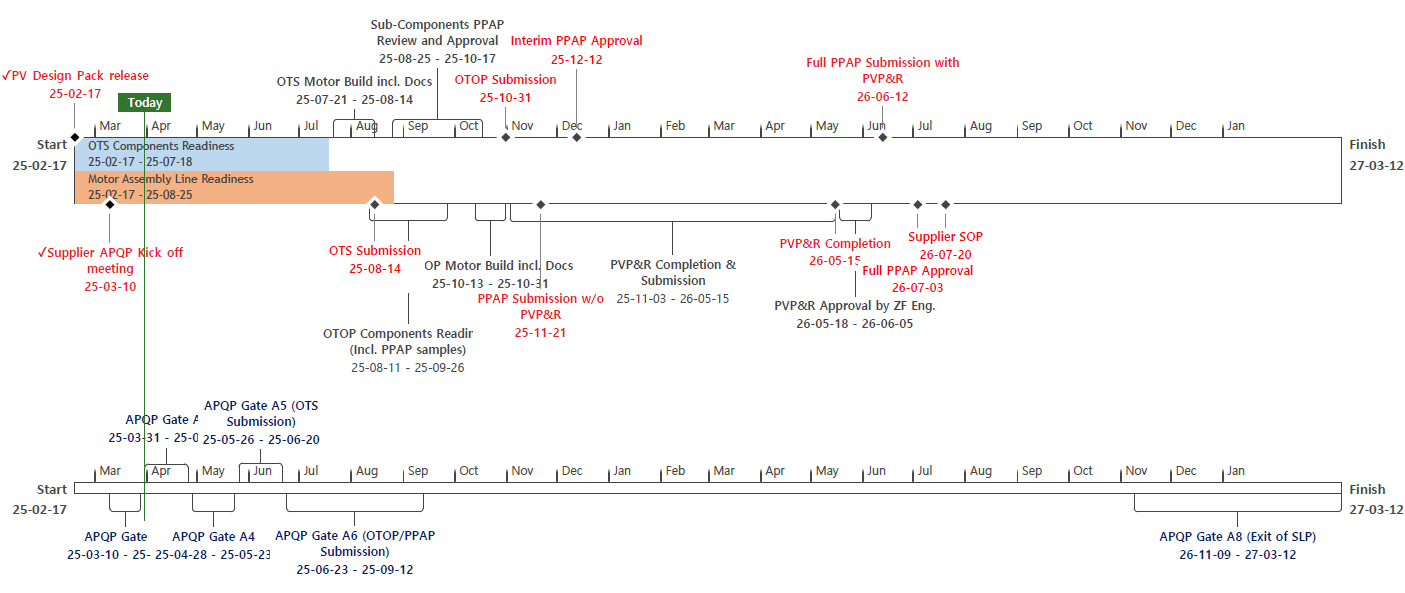

Why a Project Timing Plan Matters in APQP

A project timing plan is more than a Gantt chart—it’s a strategic roadmap that aligns product development milestones with quality deliverables. It ensures:

• Timely completion of APQP phases
• Early identification of risks
• Coordination across engineering, quality, purchasing, and manufacturing
• Compliance with IATF 16949 and customer-specific requirements

---

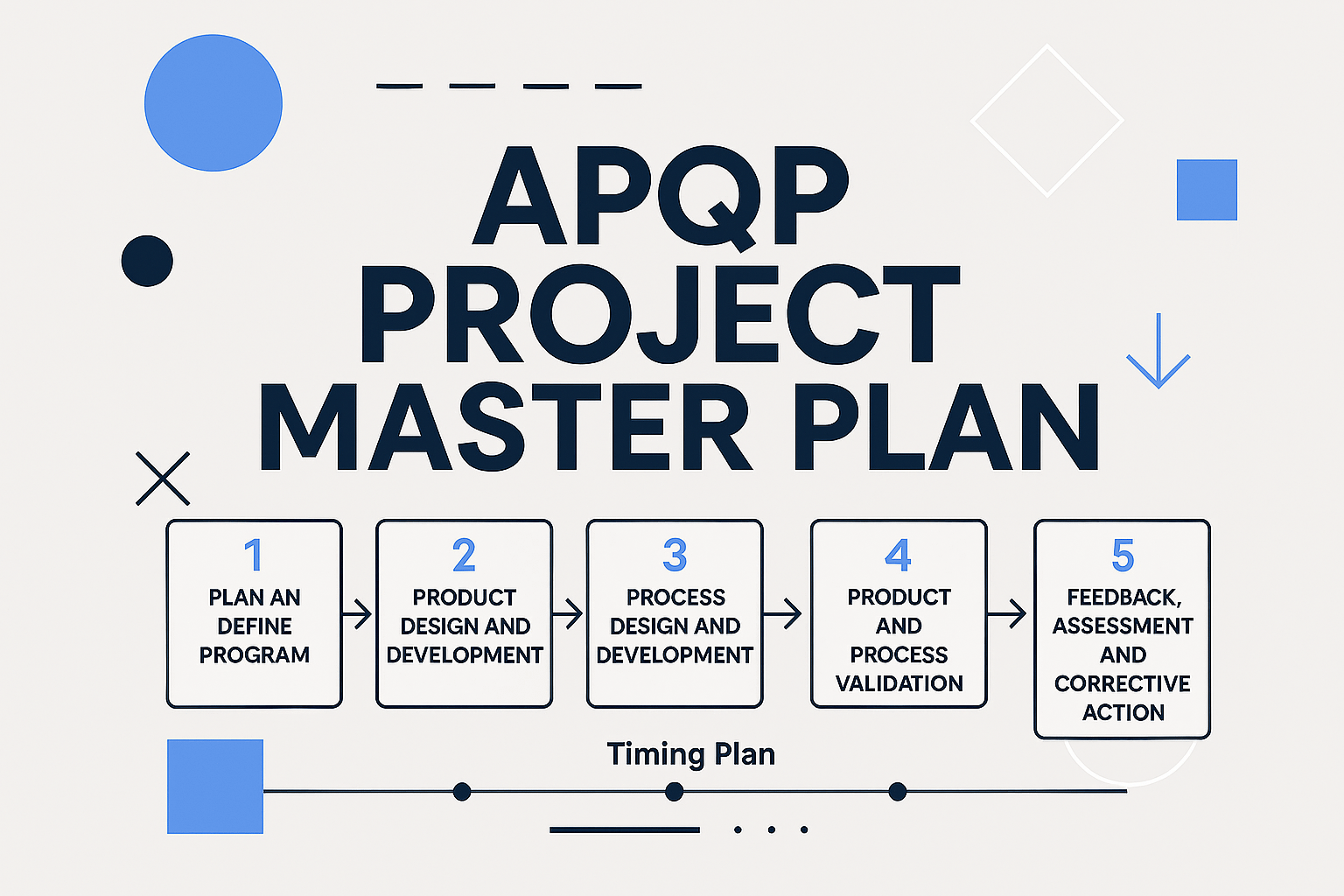

AIAG APQP: 5 Phases and Timing Plan Integration

The AIAG APQP framework divides product development into five distinct phases, each with specific deliverables and timing checkpoints:

Phase 1: Plan and Define Program

• Understand customer needs
• Define product objectives
• Develop the Product Development Timing Plan
• Key outputs: Design goals, reliability targets, preliminary BOM, process flowchart

Phase 2: Product Design and Development

• Finalize product drawings and specifications
• Conduct DFMEA and design reviews
• Update timing plan based on design maturity

Phase 3: Process Design and Development

• Develop manufacturing processes
• Conduct PFMEA and control plan drafts
• Align timing with tooling, equipment, and layout readiness

Phase 4: Product and Process Validation

• Execute production trials
• Validate process capability and measurement systems
• Timing plan includes PPAP submission and Safe Launch activities

Phase 5: Feedback, Assessment, and Corrective Action

• Monitor production performance
• Implement lessons learned
• Timing plan supports continuous improvement loops

Each phase is gated—progression depends on meeting predefined criteria. The timing plan must reflect these gates and include buffer periods for risk mitigation.

---

VDA Maturity Level Assurance: 8 Milestones for Timing Control

The VDA MLA model offers a German alternative to APQP, focusing on maturity levels (ML0 to ML7):

• ML0: Concept phase
• ML1–ML5: Development and validation phases
• ML6–ML7: SOP and post-launch evaluation

Each maturity level corresponds to a milestone in the project schedule. The timing plan must:

• Define expected maturity indicators (product, process, project)
• Include standardised measurement criteria
• Support milestone meetings with documented evidence

VDA emphasizes early error detection and supplier-customer alignment. Timing plans must be synchronized across the supply chain.

---

Best Practices for APQP Timing Plan Development

1. Use Phase-Gate Logic: Align timing with APQP/VDA phases and define entry/exit criteria.
2. Integrate Core Tools: Link timing to DFMEA, PFMEA, Control Plan, and PPAP milestones.
3. Include Resource Planning: Assign responsibilities and ensure capacity for each task.
4. Manage Dependencies: Identify task interrelations to avoid bottlenecks.
5. Monitor Progress: Use dashboards and milestone reviews to track adherence.
6. Adapt for Customer Requirements: Customize timing plans based on OEM expectations (e.g., GM, VW, Stellantis).

---

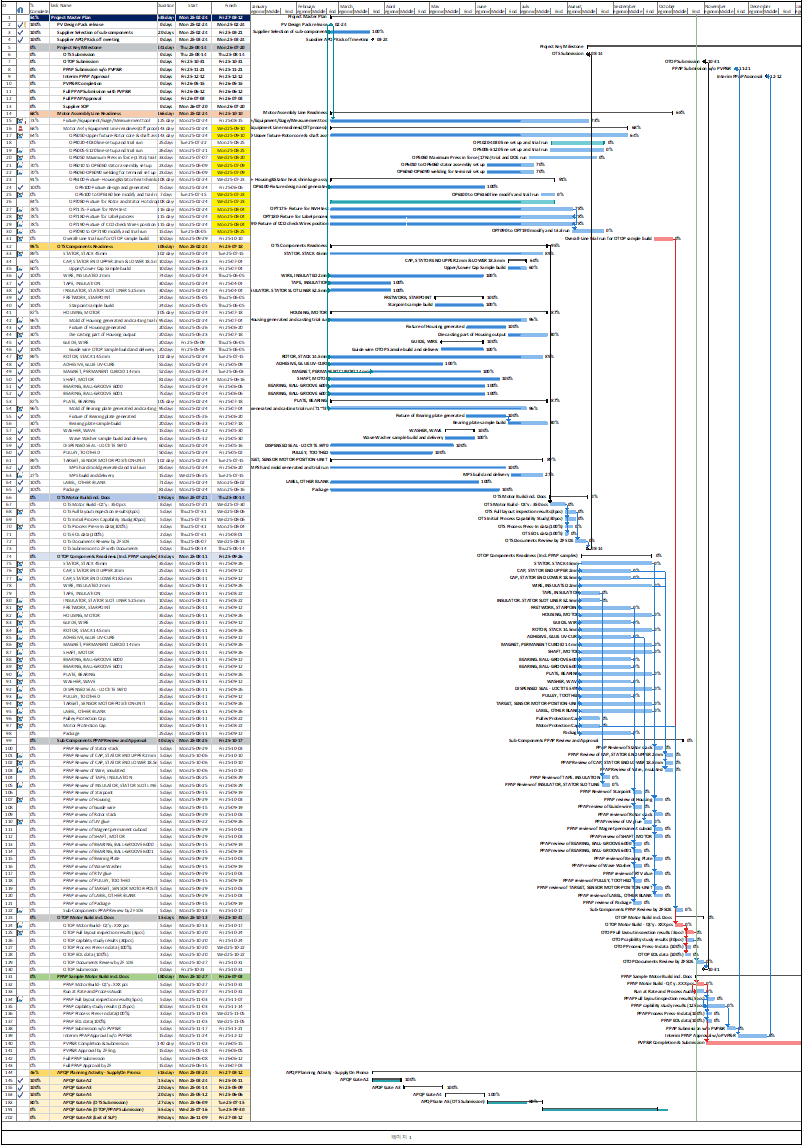

APQP Project Timing Plan Checklist (AIAG & VDA Integrated)

Here is a checklist table for developing a Project Timing Plan in APQP, based on AIAG and VDA guidelines. This table aligns key activities with their respective phases/milestones and includes recommended timing and deliverables:

Phase / Maturity Level	Key Activities	Deliverables	Recommended Timing	Responsible Function
AIAG Phase 1 / VDA ML0–ML1	Program Planning & Definition	Product Development Timing Plan, Design Goals, Reliability Targets	Project Kick-off	Program Manager, Engineering
	Voice of Customer Analysis	VOC Matrix, QFD	Week 1–2	Sales, Quality
	Feasibility Review	Feasibility Checklist	Week 2–3	Cross-functional Team
AIAG Phase 2 / VDA ML2–ML3	Product Design	DFMEA, Design Reviews, BOM	Week 4–8	Design Engineering
	Design Verification	Prototype Test Plan, DVP&R	Week 6–10	R&D, Testing
	Supplier Selection	Sourcing Plan, Supplier APQP Commitment	Week 8–12	Purchasing
AIAG Phase 3 / VDA ML4	Process Design	PFMEA, Process Flow Diagram, Control Plan Draft	Week 10–14	Manufacturing Engineering
	Tooling & Equipment Planning	Tooling List, Layout Plan	Week 12–16	Tooling, Facilities
	Work Instructions	Draft WI, Operator Training Plan	Week 14–18	Production, Quality
AIAG Phase 4 / VDA ML5–ML6	Product & Process Validation	Run@Rate, MSA, Capability Studies	Week 18–22	Quality, Production
	PPAP Submission	PPAP Package (Level 3)	Week 20–24	Quality
	Safe Launch Plan	Containment Strategy	Week 22–26	Quality, Customer Service
AIAG Phase 5 / VDA ML7	Feedback & Continuous Improvement	Lessons Learned, Audit Reports	Post-SOP (Ongoing)	All Functions
	Final Review & Closure	Final APQP Report, Customer Approval	SOP + 4 weeks	Program Manager

Conclusion

Whether you follow AIAG’s five-phase APQP or VDA’s eight-level maturity model, a well-structured project timing plan is essential for delivering quality automotive components on time and within budget. By integrating risk management, cross-functional collaboration, and milestone tracking, your timing plan becomes a strategic tool—not just a schedule.
